Description

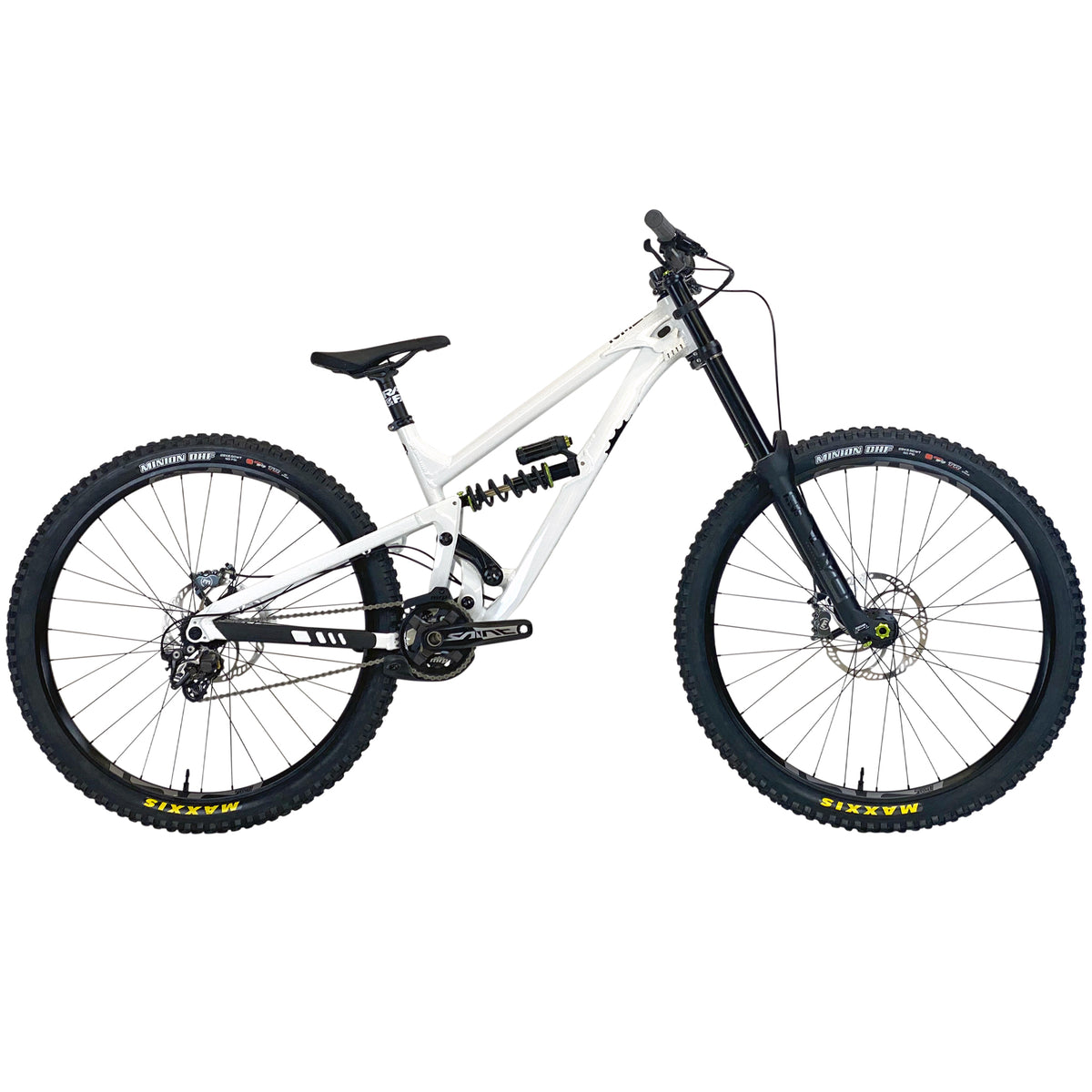

white mountainbike Canfield ONE.229" WHEELS 203MM REAR 203MM FRONT The anti gravity gravity machine. Introducing the ONE. 2, the first CBF downhill freeride bike from the fun junkies at Canfield. Built around 29 inch wheels and the patented Canfield Balance Formula suspension platform, the ONE. 2 is a DH weapon engineered to take on the roughest race tracks and biggest bike park lines with confidence. And thanks to the ultra efficient CBF tuned linkage, it pedals like nothing with 8
29" WHEELS // 203MM REAR // 203MM FRONT
The anti-gravity gravity machine. Introducing the ONE.2, the first CBF™ downhill/freeride bike from the fun junkies at Canfield. Built around 29-inch wheels and the patented Canfield Balance Formula™ suspension platform, the ONE.2 is a DH weapon engineered to take on the roughest race tracks and biggest bike-park lines with confidence. And thanks to the ultra-efficient CBF™ tuned linkage, it pedals like nothing with 8 inches of travel should to ensure nothing is wasted, whether you’re sprinting across the finish line or into the next jump.
BUILD SPECS
| CORE | PRO | |
|
Fork |
RockShox BoXXer Ultimate 35mm (red) |
Fox 40 Factory (orange or black) |
|
Shock |
RockShox Vivid Coil |
Fox DHX2 Coil |
|
Cranks |
Canfield DH |
SRAM X01 DH |
|
Chainring |
e*thirteen 34t Round |
e*thirteen 34t Round |
|
Shifter |
SRAM X01 DH | SRAM X01 DH |
|
Derailleur |
SRAM GX DH | SRAM X01 DH |
|
Cassette |
SRAM 7 Speed | SRAM GX DH |
|
Brakes |
TRP DH-R EVO |
TRP DH-R EVO |
|
Rotors |
203mm 2.3 |
203mm 2.3 |
|
Wheels |
Custom Spank 359 Build |
Custom Spank 359 Build |
|
Tires |
Maxxis Minion DHF 2.5 / Assegai 2.5 |
Maxxis Minion DHF 2.5 / Assegai 2.5 |
|
Seatpost |
RaceFace Chester |
RaceFace Chester |
|
Saddle |
Canfield SDG | Canfield SDG |
|
Bar |
e*thirteen Base 800mm | e*thirteen Base 800mm |
|
Stem |
Canfield Special Blend DH 45mm |
Canfield Special Blend DH 45mm |
|
Seatclamp |
Canfield | Canfield |
FEATURES
• 29” / 27.5” Downhill/Freeride
• 7005 aluminum with CNC links
• Patented Canfield Balance Formula™ Suspension
• 203mm/190mm travel
• Internal Cable Routing w/ Interchangeable Ports
• Custom CBF Chainstay Protector
• 1.5 headtube
• 20mm pivot bearings
• Replaceable rear derailleur hanger, spare hanger included
FRAME SPECS
• Shock Specs: Metric: 250mm x 75mm (203mm), (20mmX8mm/40mmX8mm hardware)
• Recommend fork length: 200mm
• Headset: 49.6mm upper/lower
• Front derailleur: Not available
• Max. chainring size: 34t (36t w/ driveside spacer)
• Bottom bracket: 83mm, threaded
• Crank Length: 155mm (MD), 160mm (LG)
• Seatpost: 30.9mm, stealth dropper compatible• Seatpost clamp: 35mm
• Rear dropouts: 150mm x 12mm, Canfield axle included
• 20mm pivot bearings
• ISCG 05
• Brake mount: IS 160mm
• Maximum seatpost insertion: 230mm(M), 240mm(L)
GEOMETRY
|
Size |
Medium |
Large |
|
Top Tube Length (Effective) |
600mm |
629mm |
|
Reach |
450mm |
475mm |
|
Stack |
629mm |
638mm |
|
Standover Height |
689mm |
698mm |
|
Seat Tube Length |
415mm |
425mm |
|
Wheel Base |
1260.5mm |
1290mm |
|
Head Tube Angle* |
63° |
63° |
|
Seat Tube Angle (Effective) |
76° |
76° |
|
Seat Tube Angle (Actual) |
67.8° |
67.8° |
|
Chainstay Length |
440mm |
440mm |
|
Bottom Bracket Drop |
22mm |
22mm |
|
Bottom Bracket Height (Approximate)** |
356.5mm |
356.5mm |
|
Head Tube length |
115mmm |
125mm |
Geo based on 29” wheels and 601mm axle-to-crown fork
*Öhlins DH fork has 620mm axle-to-crown w/ 62.2 HA
*180/190mm fork w/ 592mm axle-to-crown results in 63.5 HA
**(27.5" wheels result in 337.8mm bb height)
|
SIZE
|
Medium
|
Large
|
|
RIDER HEIGHT
|
5'5"-5'11"
|
5'9"-6'3"
|
Photos for illustration purposes only. Final component spec may vary based on availability.
